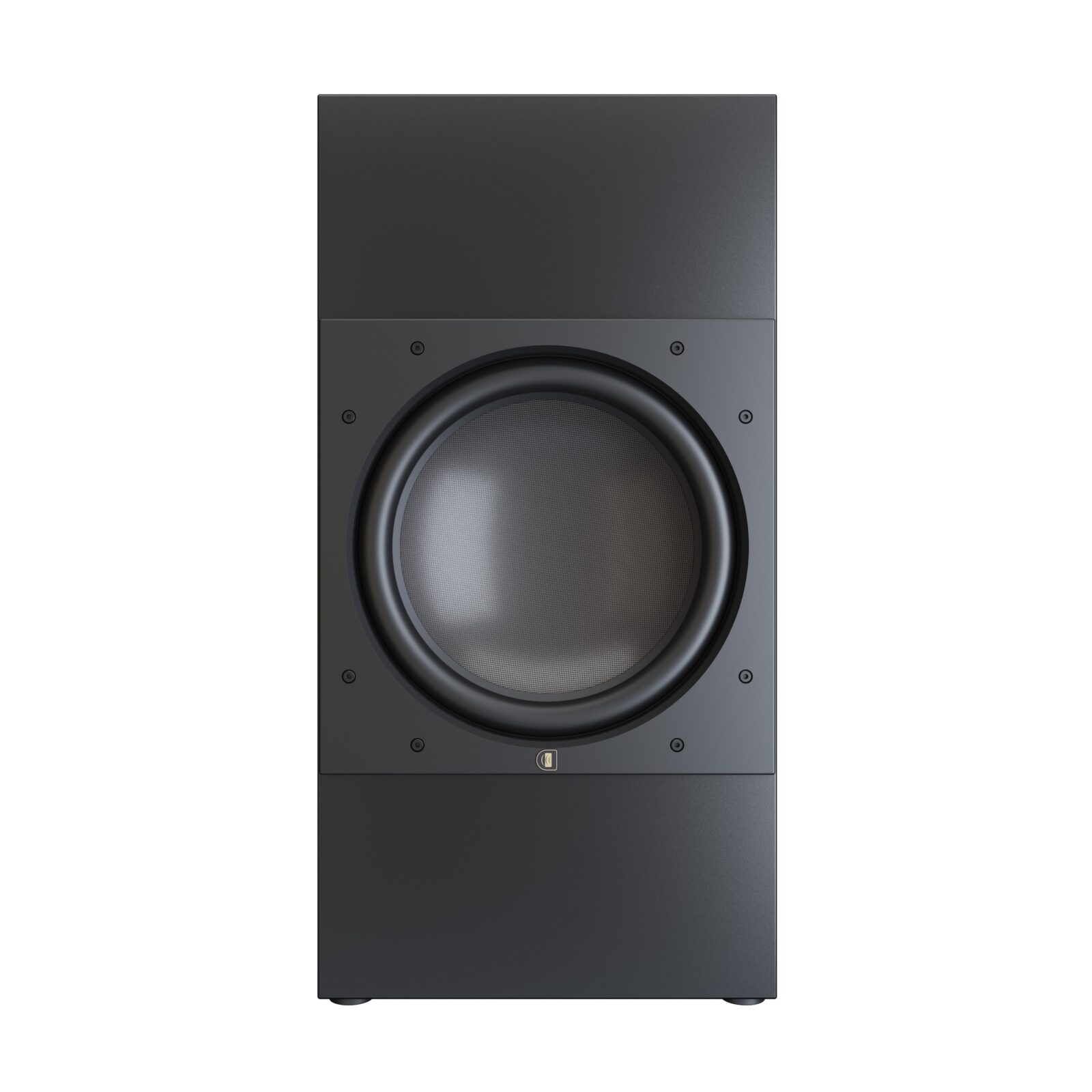

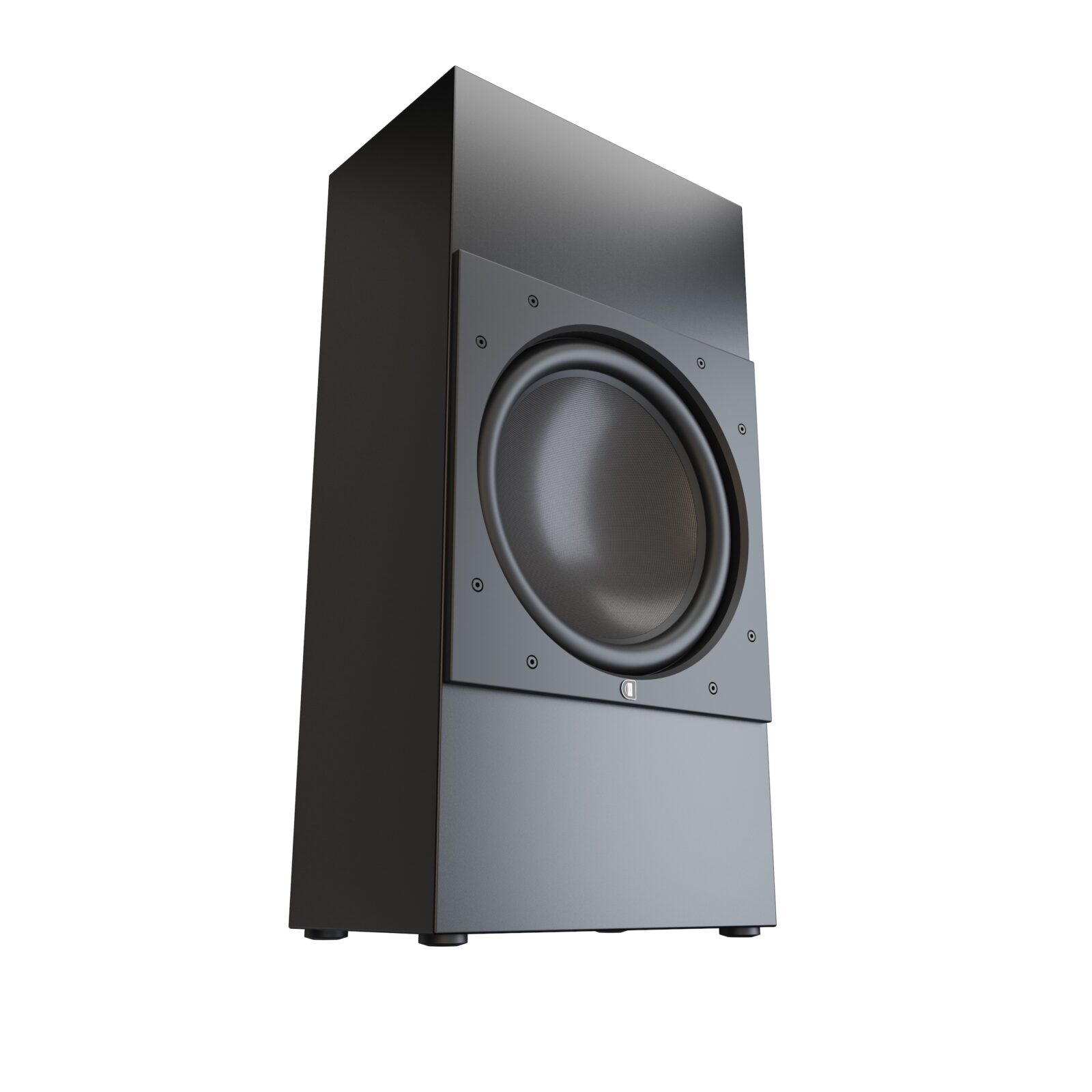

Perlisten R18is Subwoofer

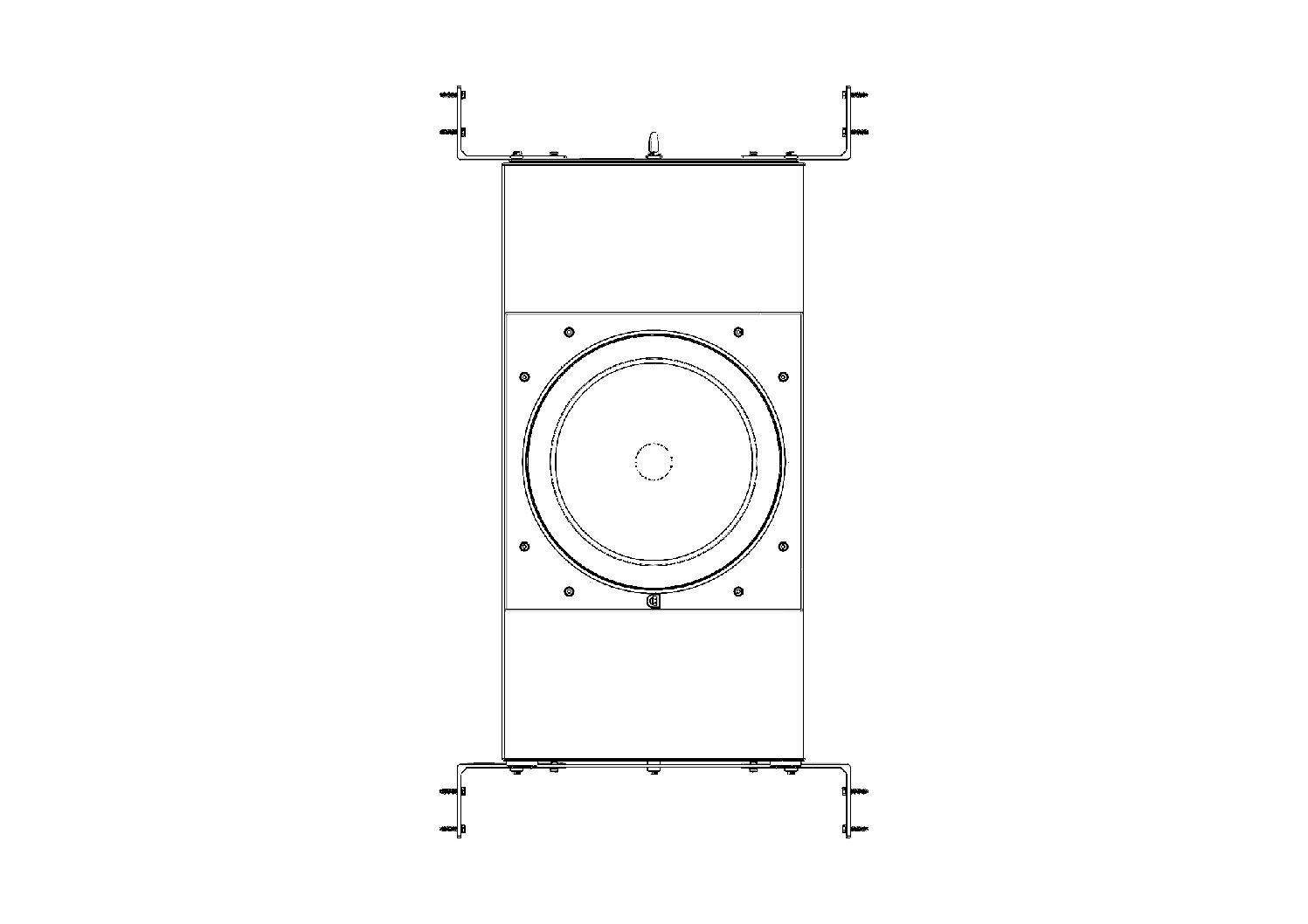

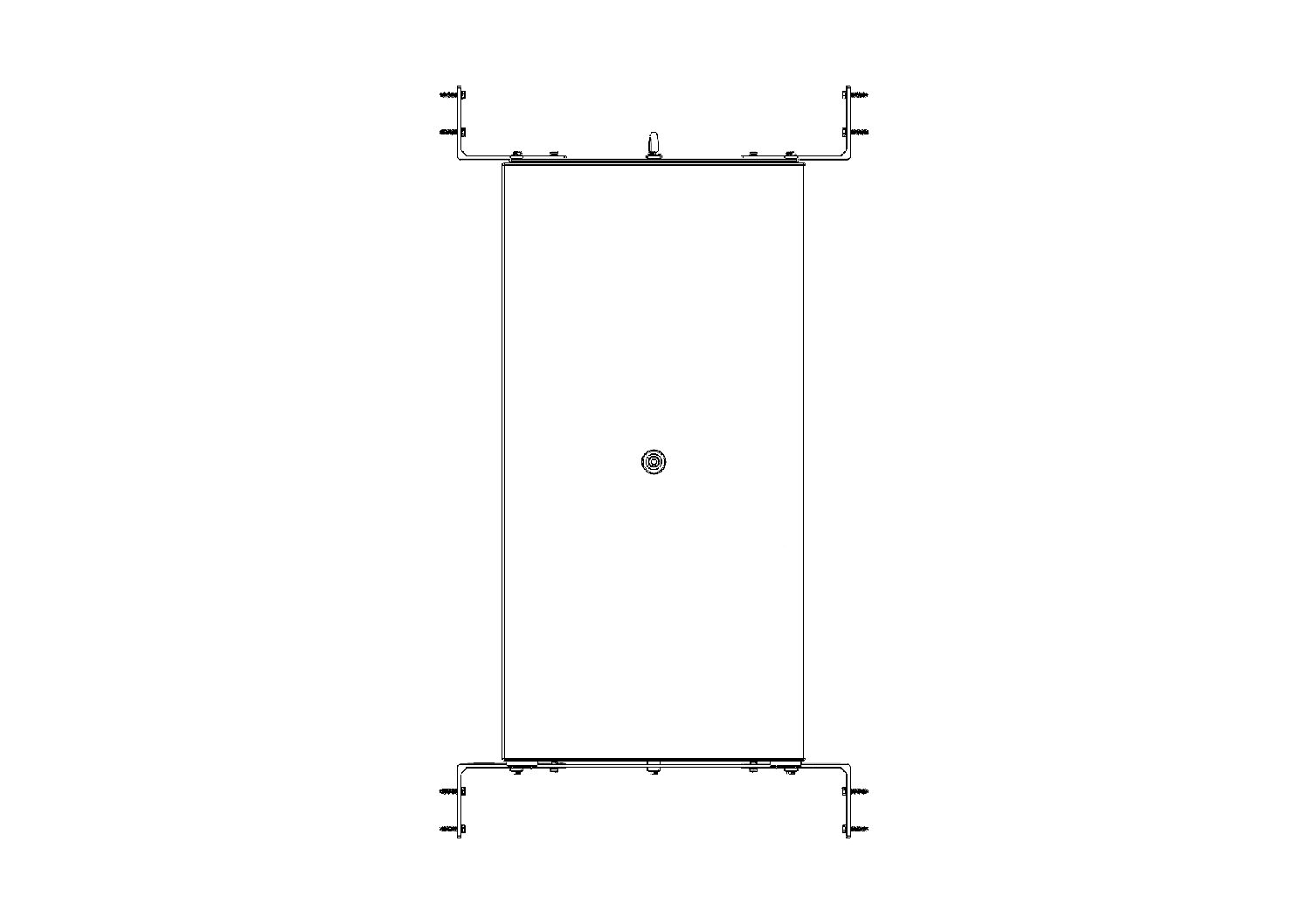

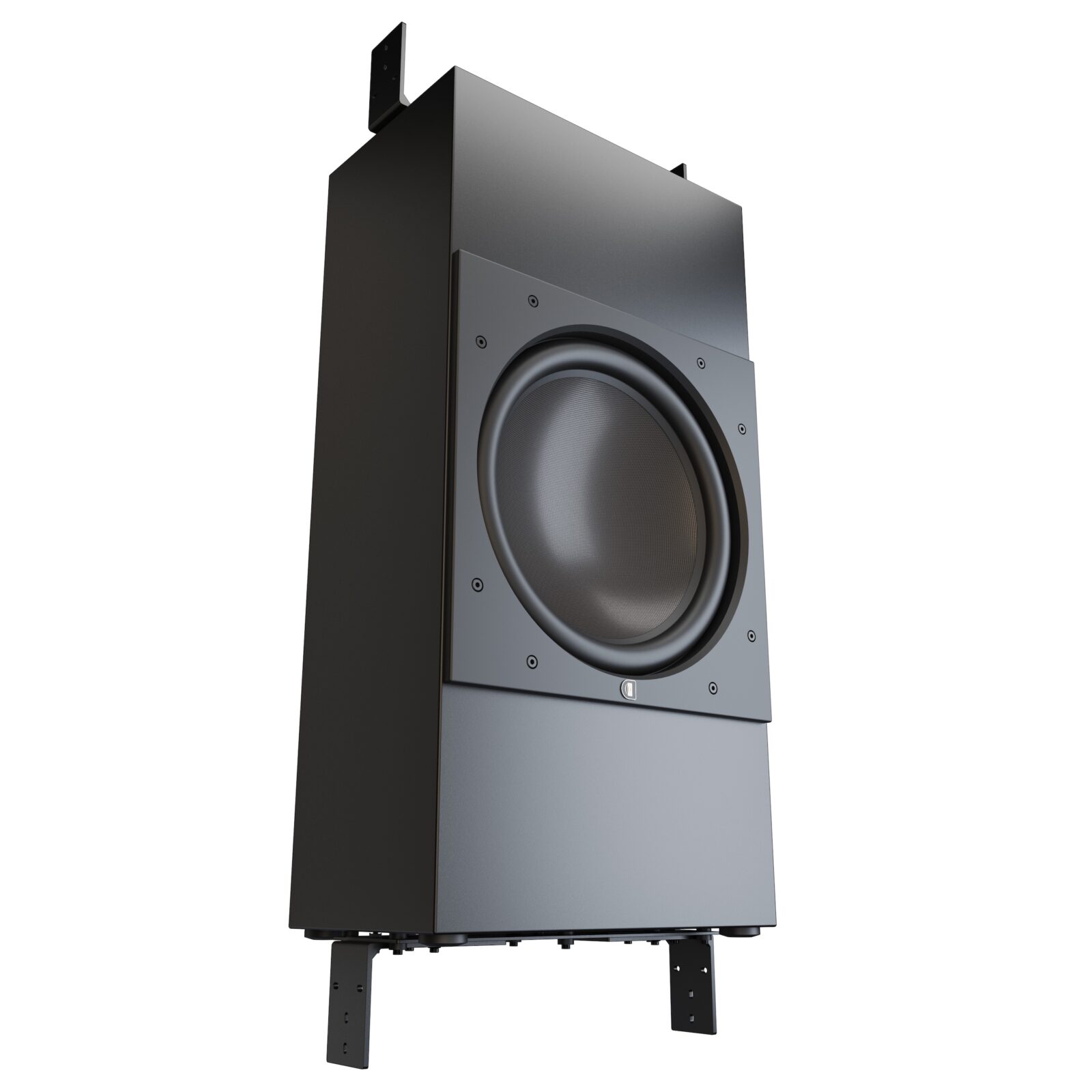

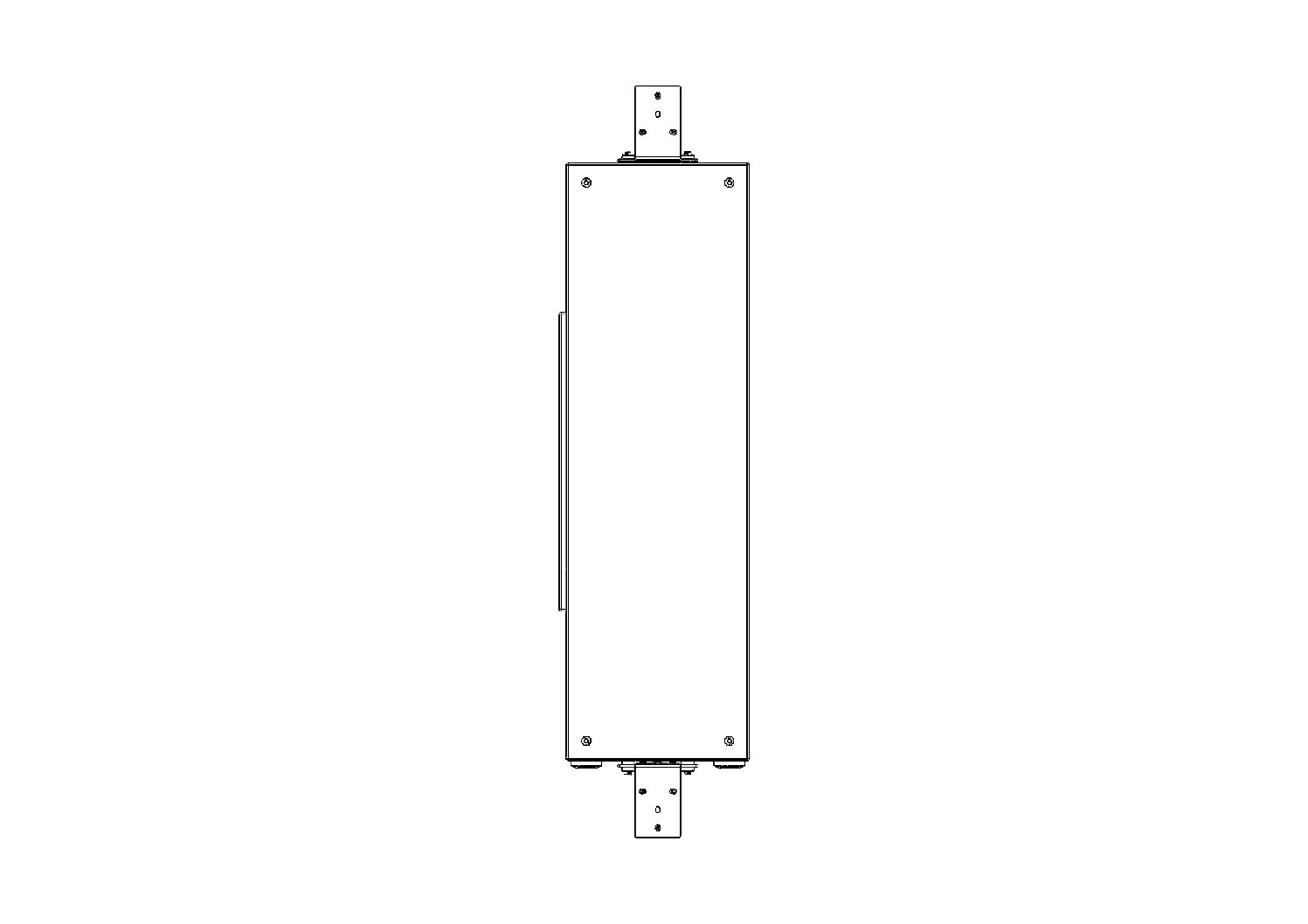

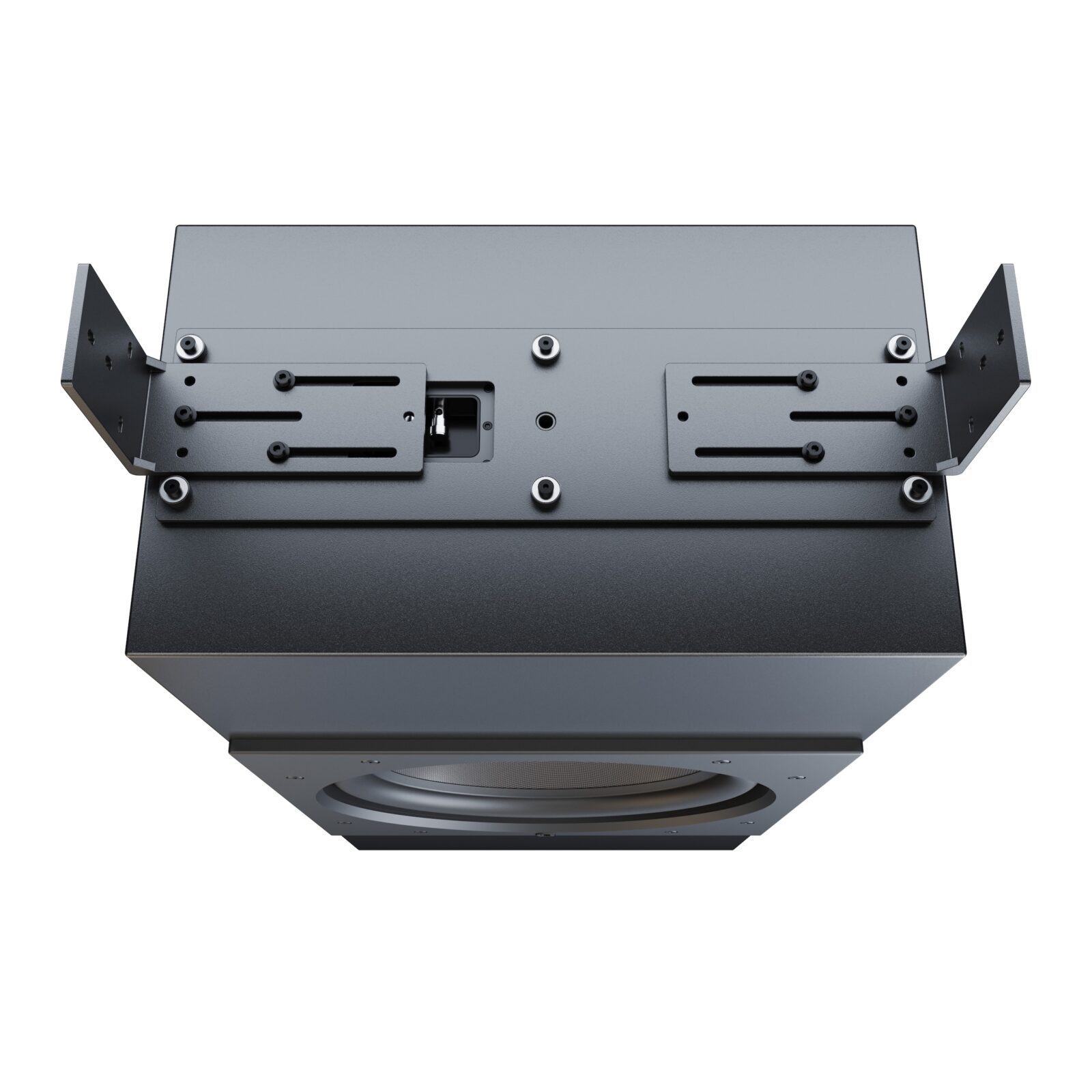

The R18is is a sealed subwoofer which we use in our custom installs. It is designed to be be placed on or inside walls or behind a screen.

The single driver is made from glass fibre diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire which enables an Xmax of 31.9mm. A 1.5kW amplifier provides ample power to fill the space with deep bass.

Proprietary nonlinear modeling techniques allows simulation of all the components and then optimize for real world driver performance – free air and in box. Further refinement is done with a Klippel laser measurement system to fine tune things in.

All functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.

All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

Audio Technical Specifications:

• Power Output: 1,500W rms
• Frequency Response:

  • THX EQ: 20-280Hz (-6dB) / 16-345Hz (-10dB)

  • Boost (Large Room) EQ: 16-280Hz (-6dB) / 14-345Hz (-10dB)

  • Cut (Small Room) EQ: 25-280Hz (-6dB) / 19-345Hz (-10dB)

• Transducer (speaker driver):
  • Woofers:
    • 1x 460mm(18 inch), Glass fibre diaphragm
    • +/-31.9mm linear excursion (Xmax)
• Parametric EQ: 10-band PEQ with 3 user presets

Connectivity(In):

• Analog Inputs:
  • 1x Balanced (XLR)
  • 1x Unbalanced (RCA)

Connectivity(Out):

• Outputs:
  • 1x Balanced XLR unbuffered
  • 1x Unbalanced RCA unbuffered
  •  1x Digital AES/2

Other:

• Alignment:  Acoustic suspension (Sealed)
• Connectivity: iOS, Android
• Available Finished: Satin Black

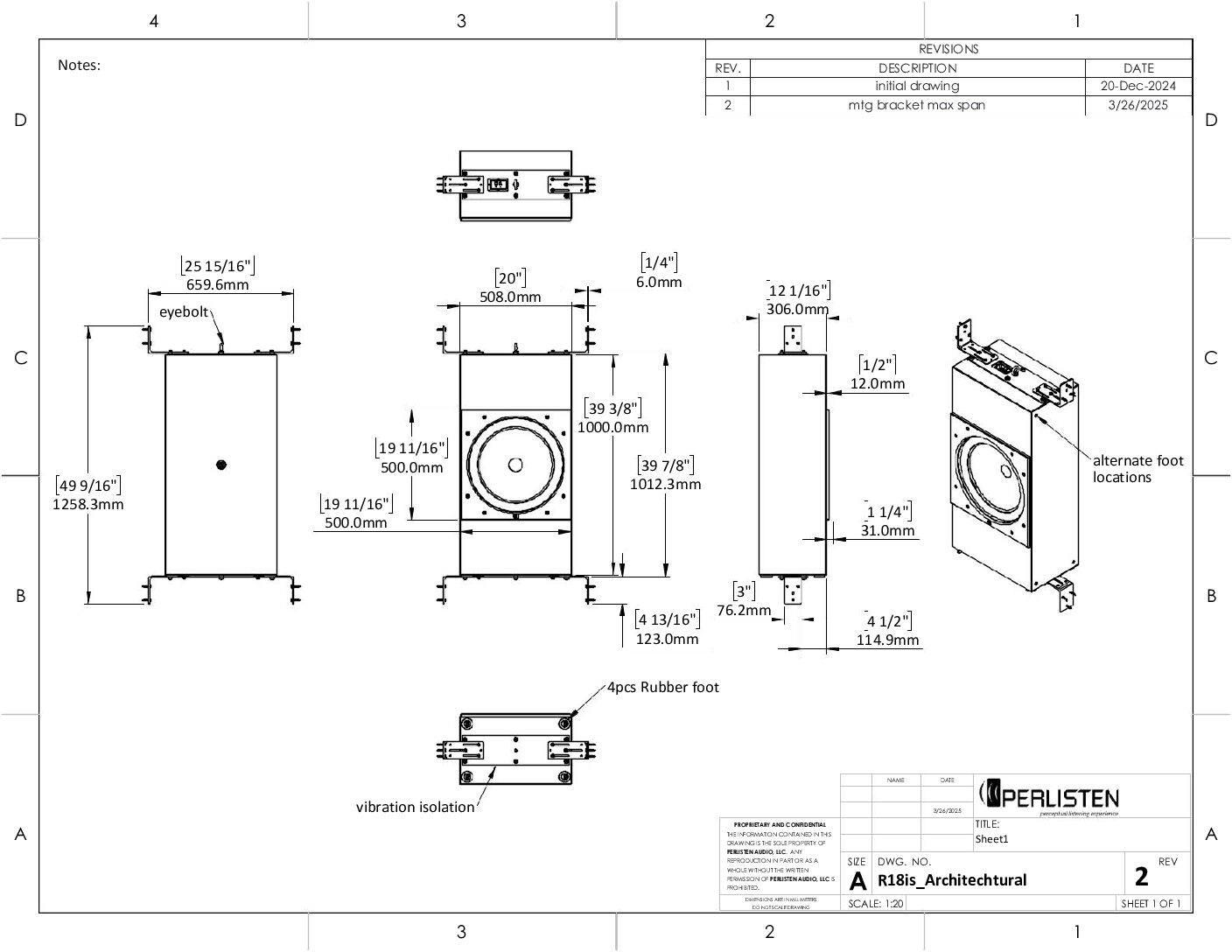

• Dimensions (cm) sub: 100 x 50.8 x 30.6 (HxWxD) without brackets
• Dimensions (cm) amp: 8.9 x 42.92 x 32.24 (HxWxD)
• Weight sub: 69.9 kg
• Weight amp: 6.1 kg
• Pricing: for a single unit. Includes DSP1500W external amp.

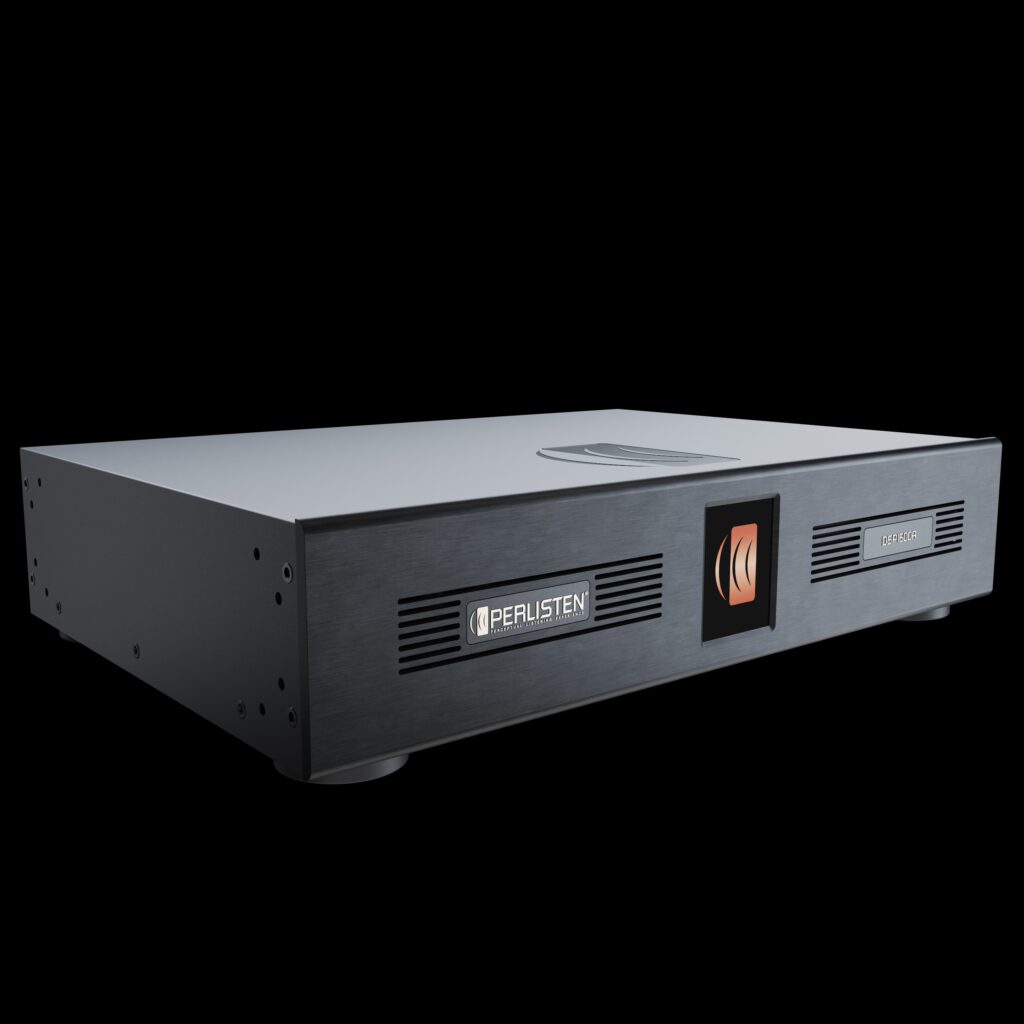

Perlisten DSP1500 External Amp
