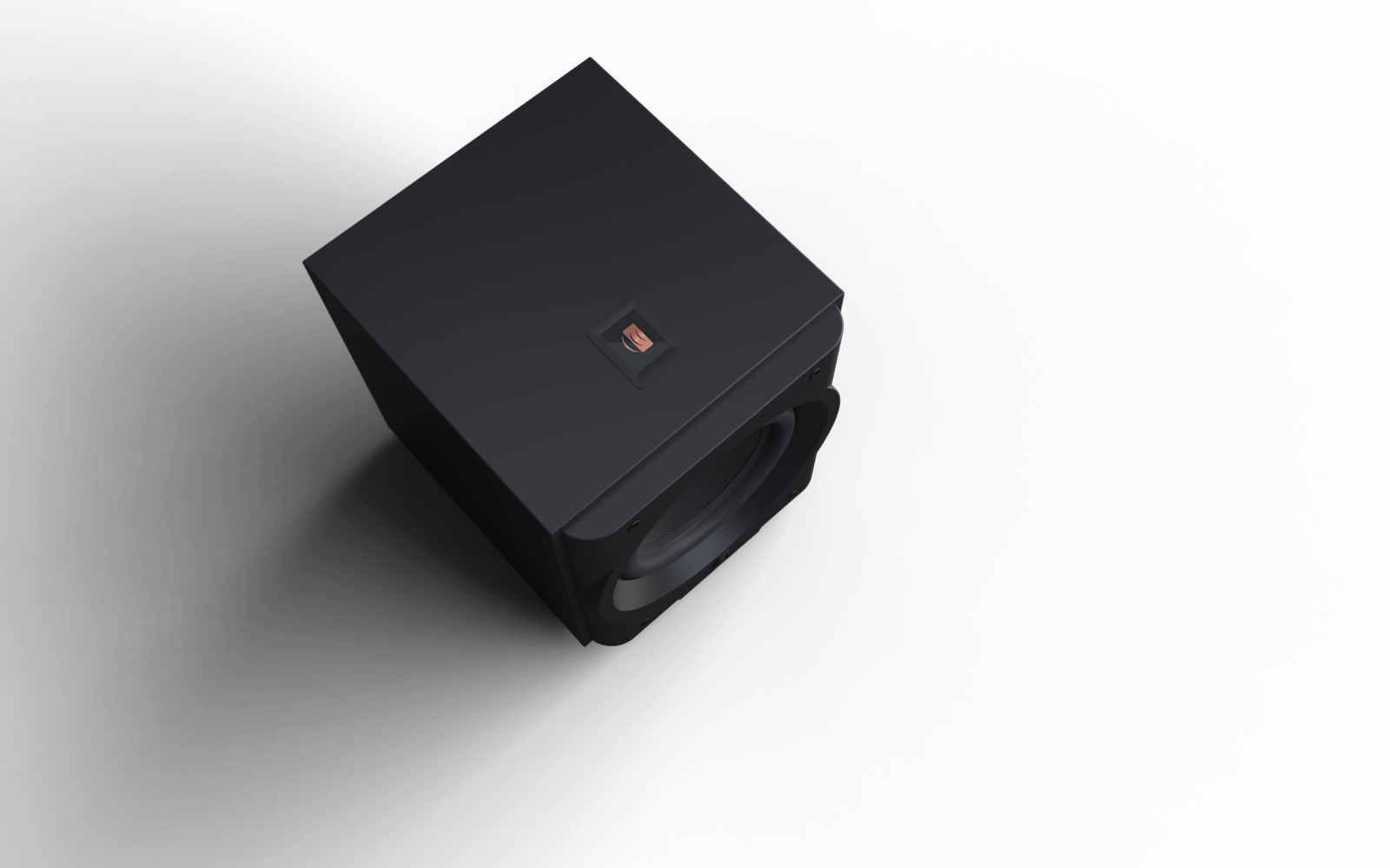

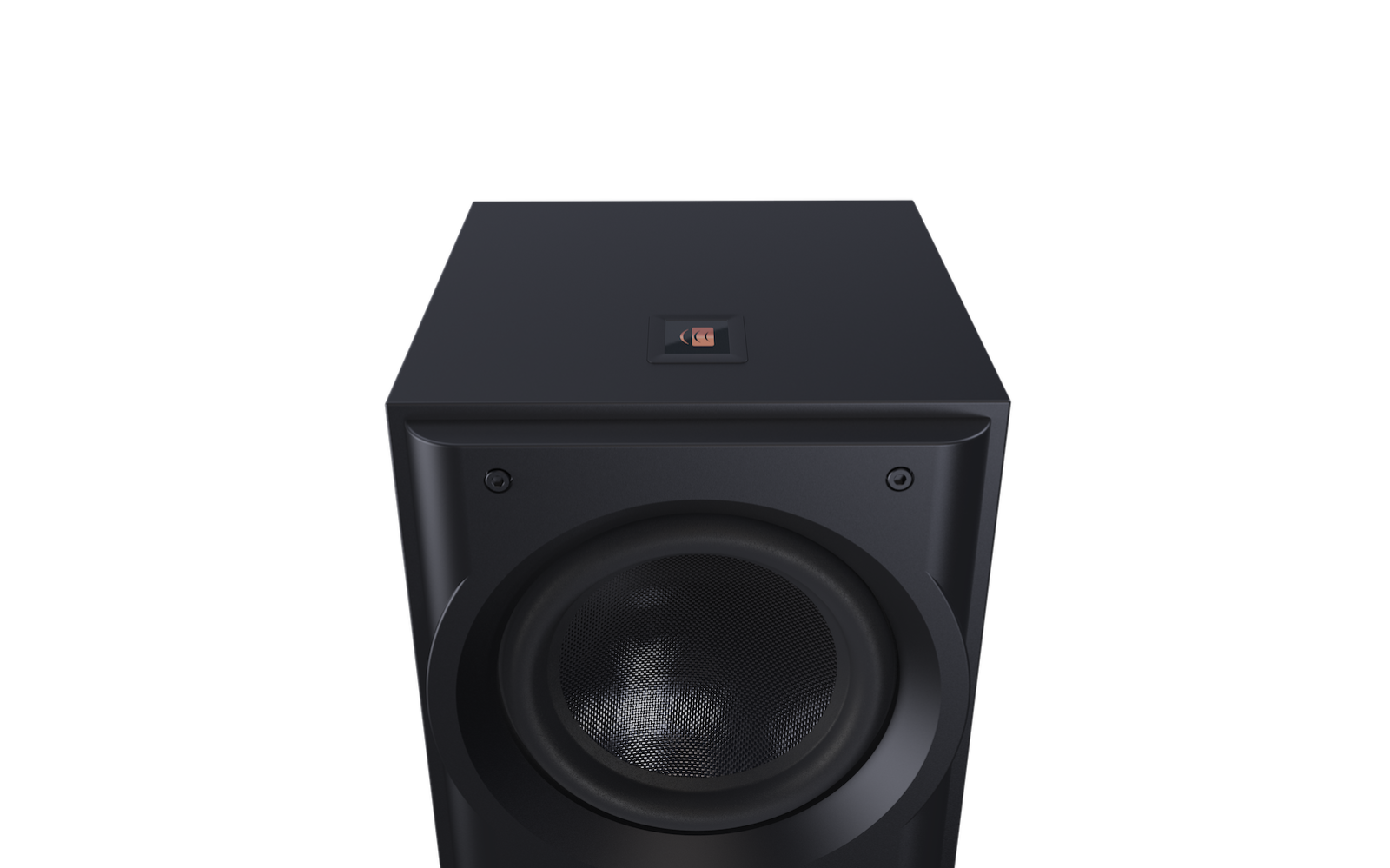

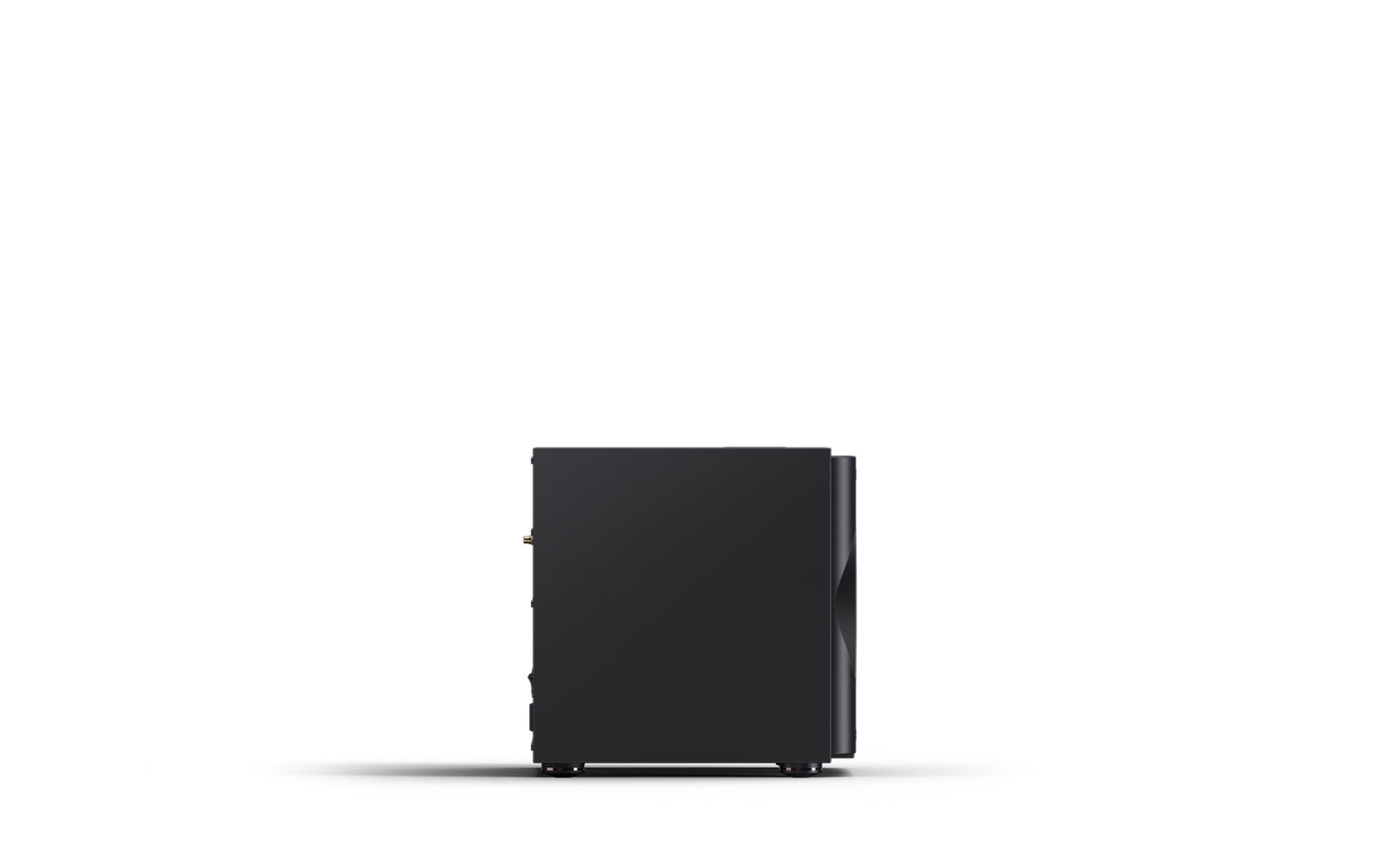

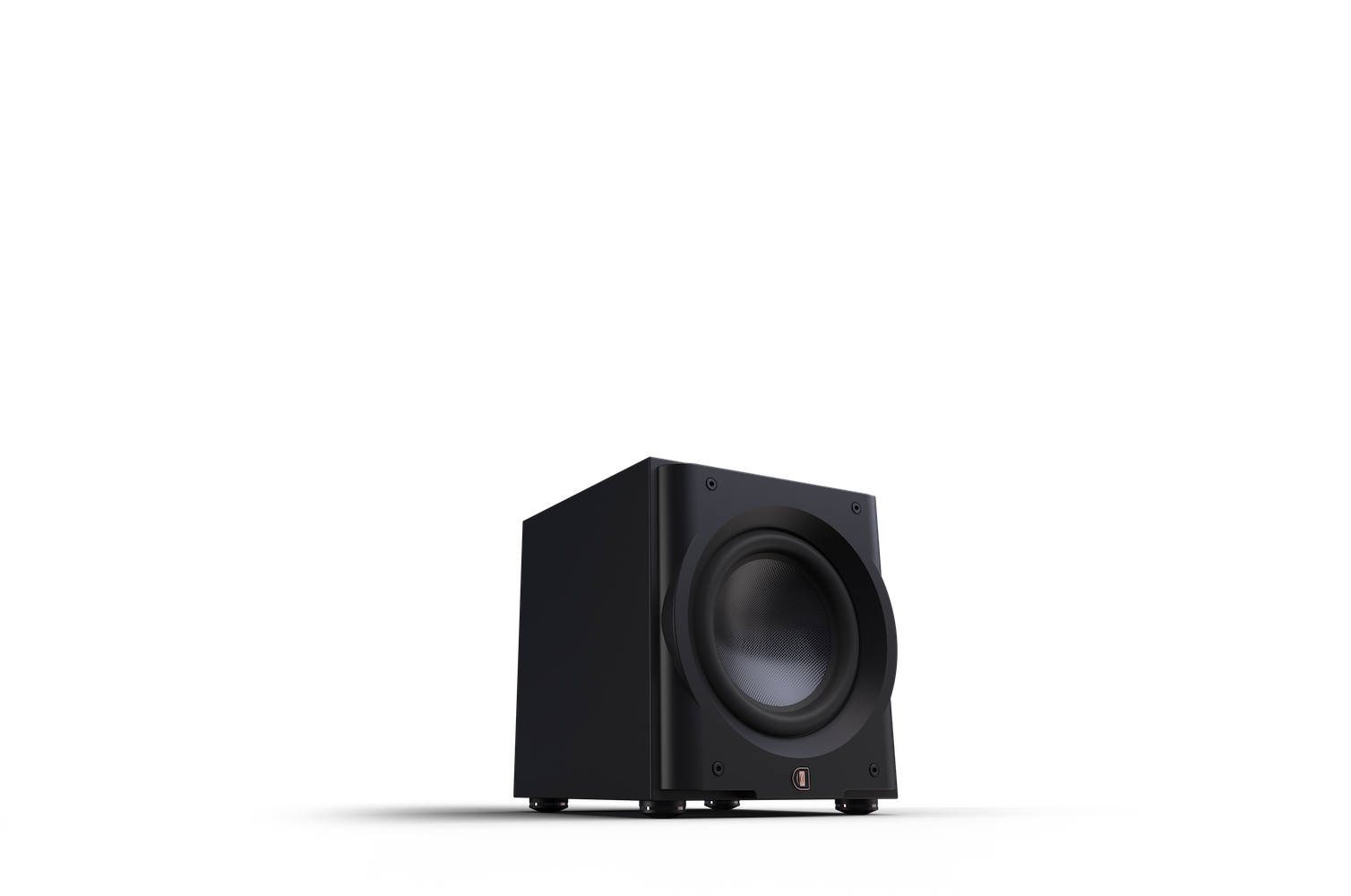

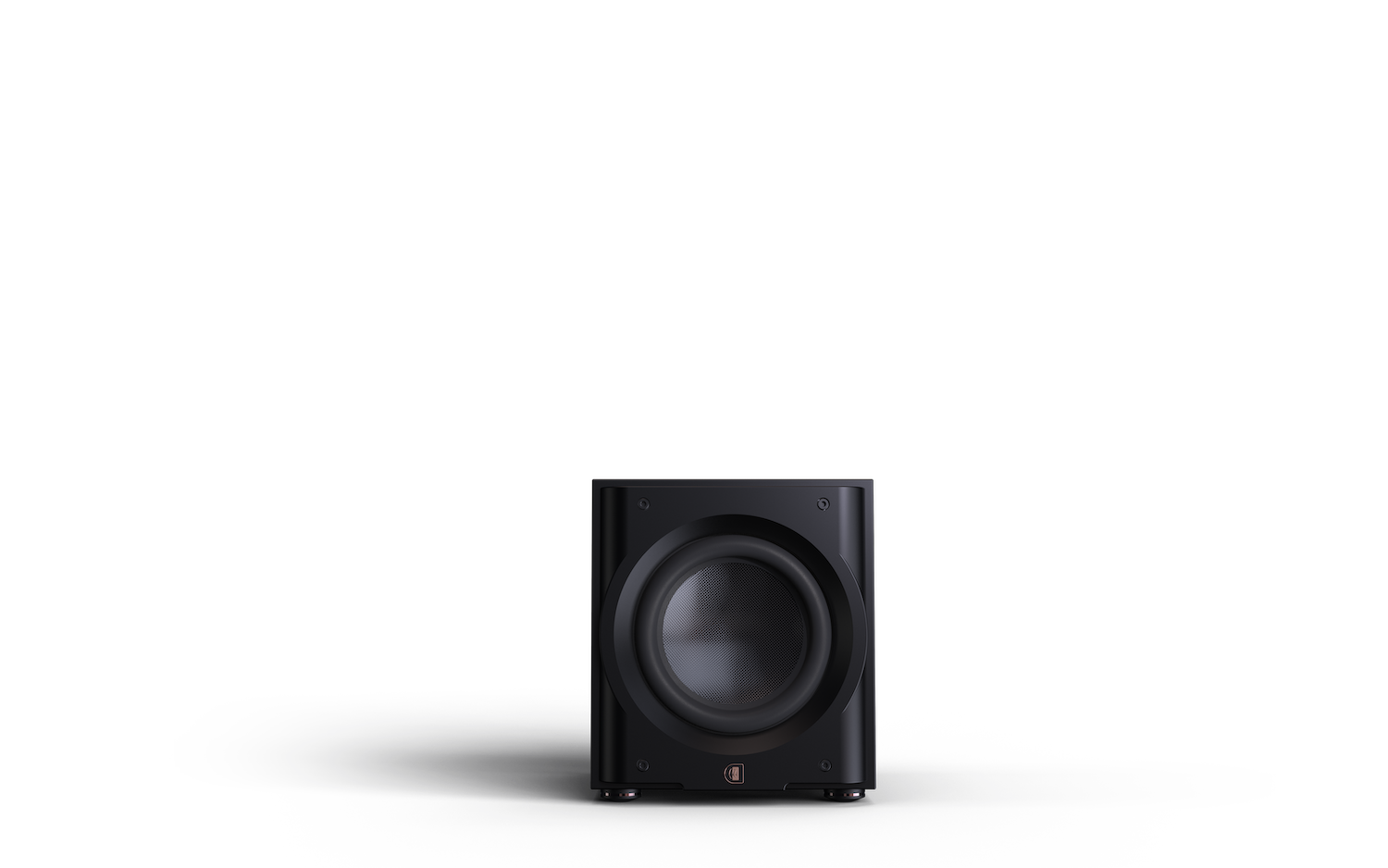

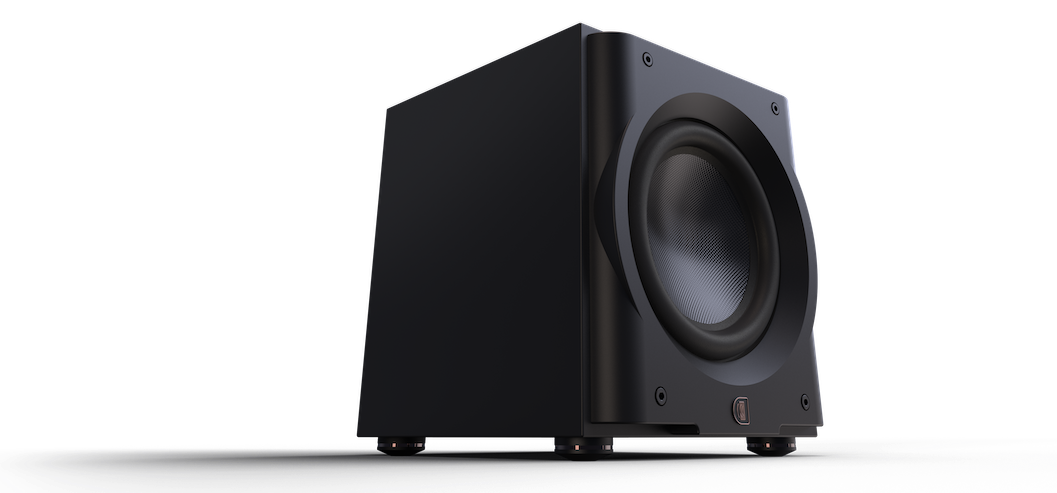

Perlisten R10s Subwoofer

The R10s is a closed subwoofer that inherits all the technology from the top line D-series. It provides an accurate sound for music listening or earth shattering movie experience.

Powered by a 1.0kW amplifier, throttled back to 750W here to match the 10” driver

The single driver is made from glass fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire which enables an X-max of 28mm.

ddProprietary nonlinear modeling techniques allows simulation of all the components and then optimize for real world driver performance – free air and in box. Further refinement is done with a Klippel laser measurement system to fine tune things in.

All functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.

All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

Audio Technical Specifications:

• Power Output: 750W rms
• Frequency Response:

  • THX EQ: 20-301Hz (-6dB) / 16-380Hz (-10dB)

  • Boost (Large Room) EQ: 16-301Hz (-6dB) / 14-380Hz (-10dB)

  • Cut (Small Room) EQ: 25-301Hz (-6dB) / 19-380Hz (-10dB)

• Transducer (speaker driver):
  • Woofers:
    • 1x 250mm(10 inch), Carbon fiber diaphragm
    • +/-20mm linear excursion (Xmax)
• Parametric EQ: 10-band PEQ with 3 user presets

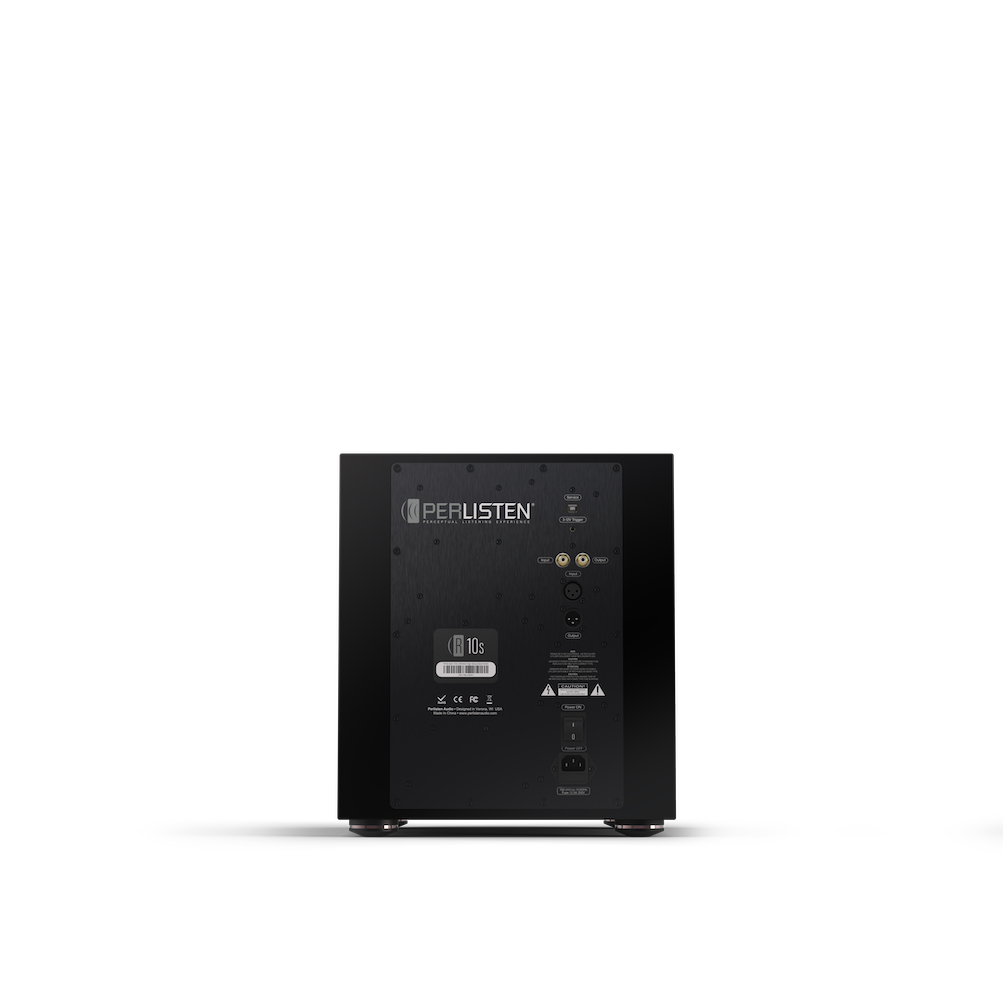

Connectivity(In):

• Analog Inputs:
  • 1x Balanced (XLR)
  • 1x Unbalanced (RCA)

Connectivity(Out):

• Outputs:
  • 1x Balanced XLR unbuffered
  • 1x Unbalanced RCA unbuffered

Other:

• Alignment:  Acoustic suspension
• Connectivity: iOS, Android
• Available Finished: Matt Black
• Dimensions (cm): 38.8 x 34 x 38 (HxWxD)
• Weight: 21 kg

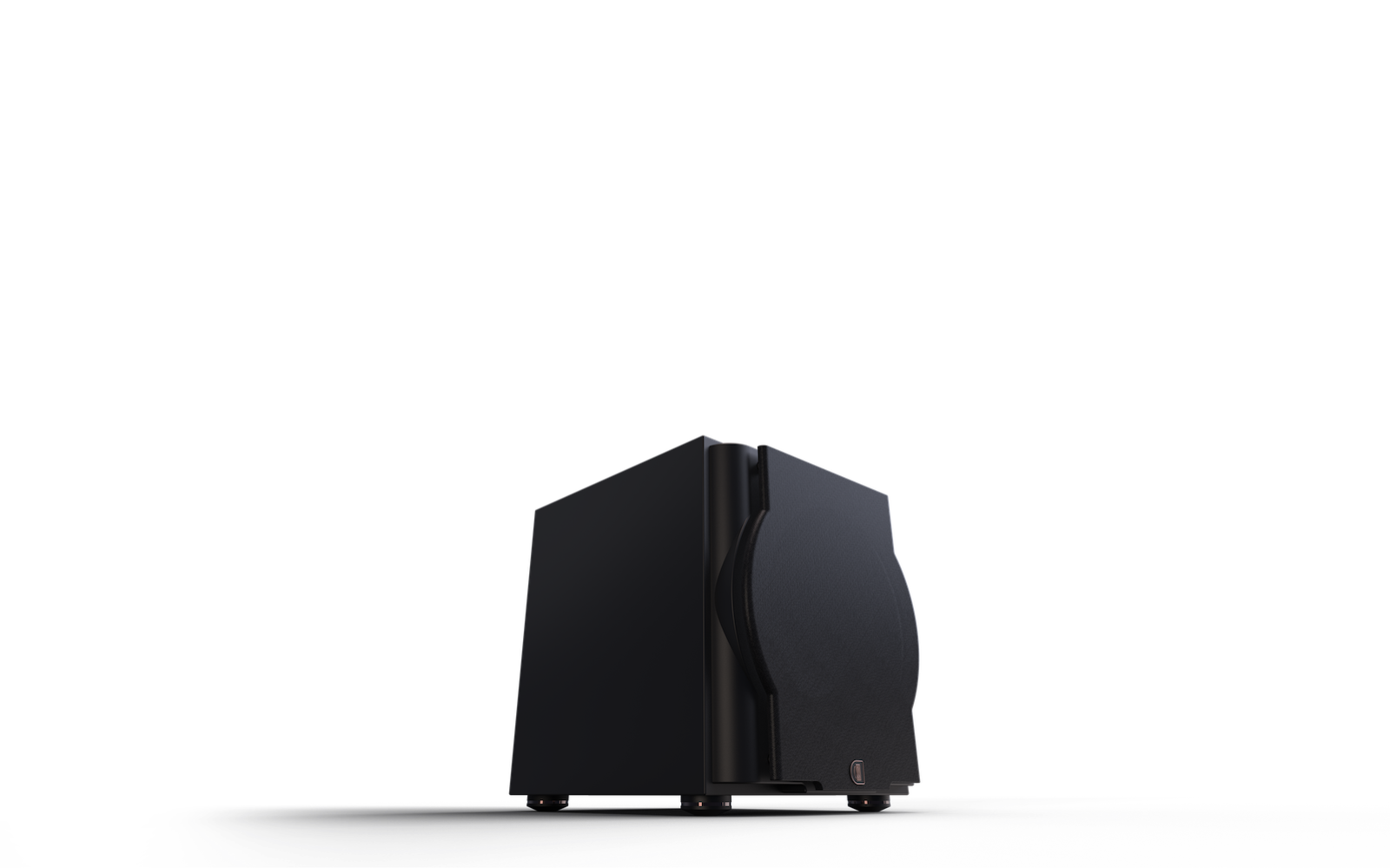

• Pricing: Excludes grills, which is an optional extra. Enquire for pricing.
