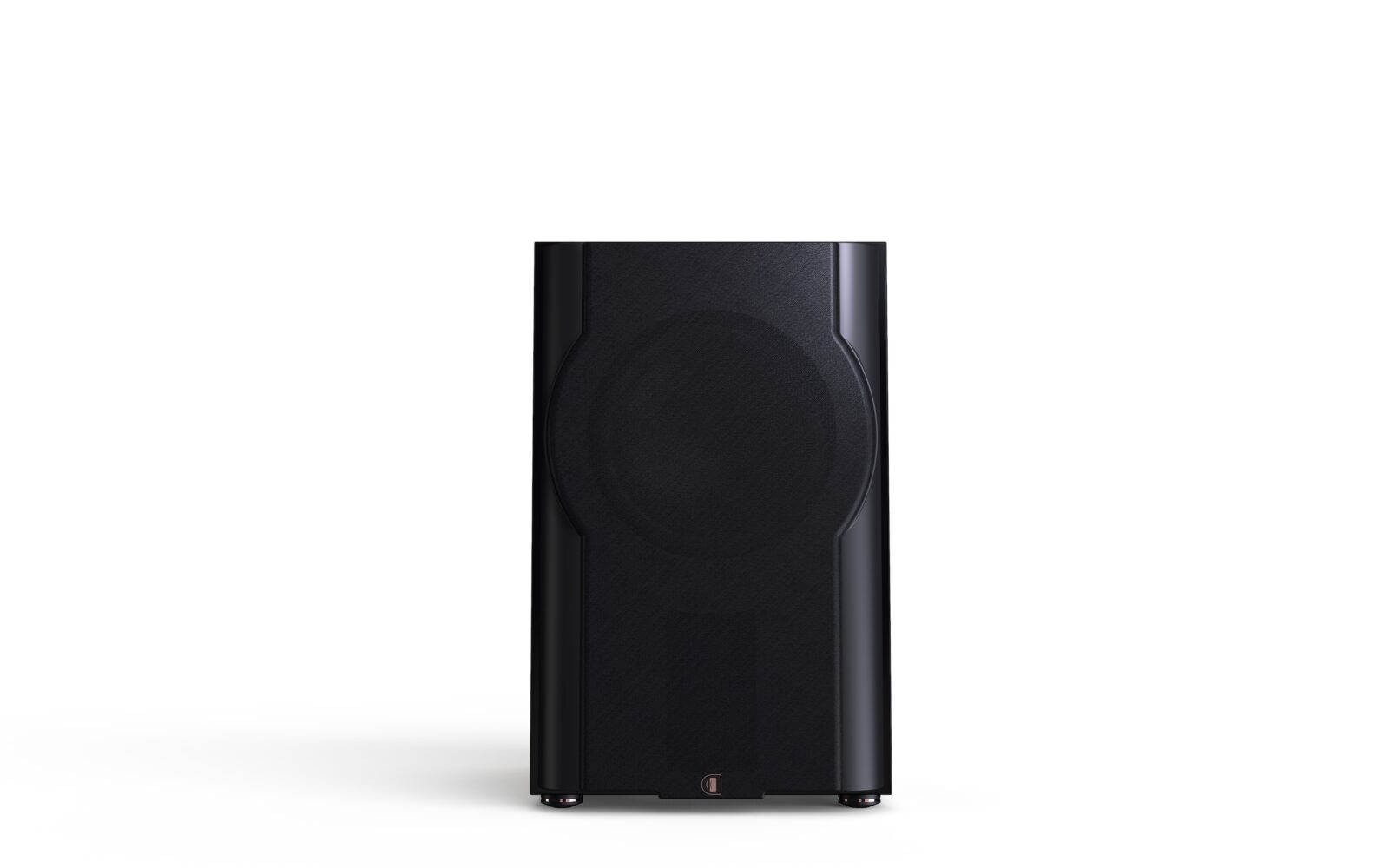

Perlisten D212s Subwoofer

The D212s forms part of the top of the line D-series subwoofers providing an accurate sound for music listening or earth shattering movie experience.

Ground up drivers developed inhouse. Carbon fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire providing a X-max of 30mm.

To take performance to another level, the push-pull drivers reduce even order harmonics distortion by an additional 10 – 12dB. Powered by a 3.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. All D-Series subs share a 2.4” LCD touchscreen display and ability to control advance settings using our App.

Certified by THX Dominus, the D-Series subs are the world’s first.

Proprietary nonlinear modeling techniques enables simulation of all the components and then optimise for real world driver performance. A Klippel laser measurement the finest details for optimal dial in.

Audio Technical Specifications:

• Power Output: 3kW rms short term
• Frequency Response:

  • THX EQ: 20-231Hz (-6dB) / 16-245Hz (-10dB)

  • Boost (Large Room) EQ: 15-231Hz (-6dB) / 13-245Hz (-10dB)

  • Cut (Small Room) EQ: 24-231Hz (-6dB) / 18-245Hz (-10dB)

• Transducers (speaker drivers) x2:
  • Woofers:
    • 2x 300mm(12 inch), Carbon fibre diaphragm
    • +/-30mm linear excursion (Xmax)

Connectivity(In):

• Analog Inputs:
  • 2x Balanced (XLR)
  • 2x Unbalanced (RCA)

Connectivity(Out):

• Outputs:
  • 2x Balanced XLR unbuffered
  • 2x Unbalanced RCA unbuffered

Other:

• Certifications: THX Dominus
• Alignment:  Push-Pull, acoustic suspension
• Connectivity: iOS, Android
• Available Finished: Piano Black
• Dimensions (cm): 66.8 x 42 x 55 (HxWxD)
• Weight: 68 kg
• Pricing: Excludes grills, which is an optional extra. Enquire for pricing.
