Perlisten A3m Monitor

The A3m is a monitor speaker is the entry level model in the Perlisten monitor range that can be placed on a stand, mounted on a wall or put on book shelf. It is an affordable speaker providing quality sound.

It is a versatile speaker that can be used in stereo listening on its own or in a 2.1 configuration. It can also be used in a LCR setup or used as surrounds in a home theatre.

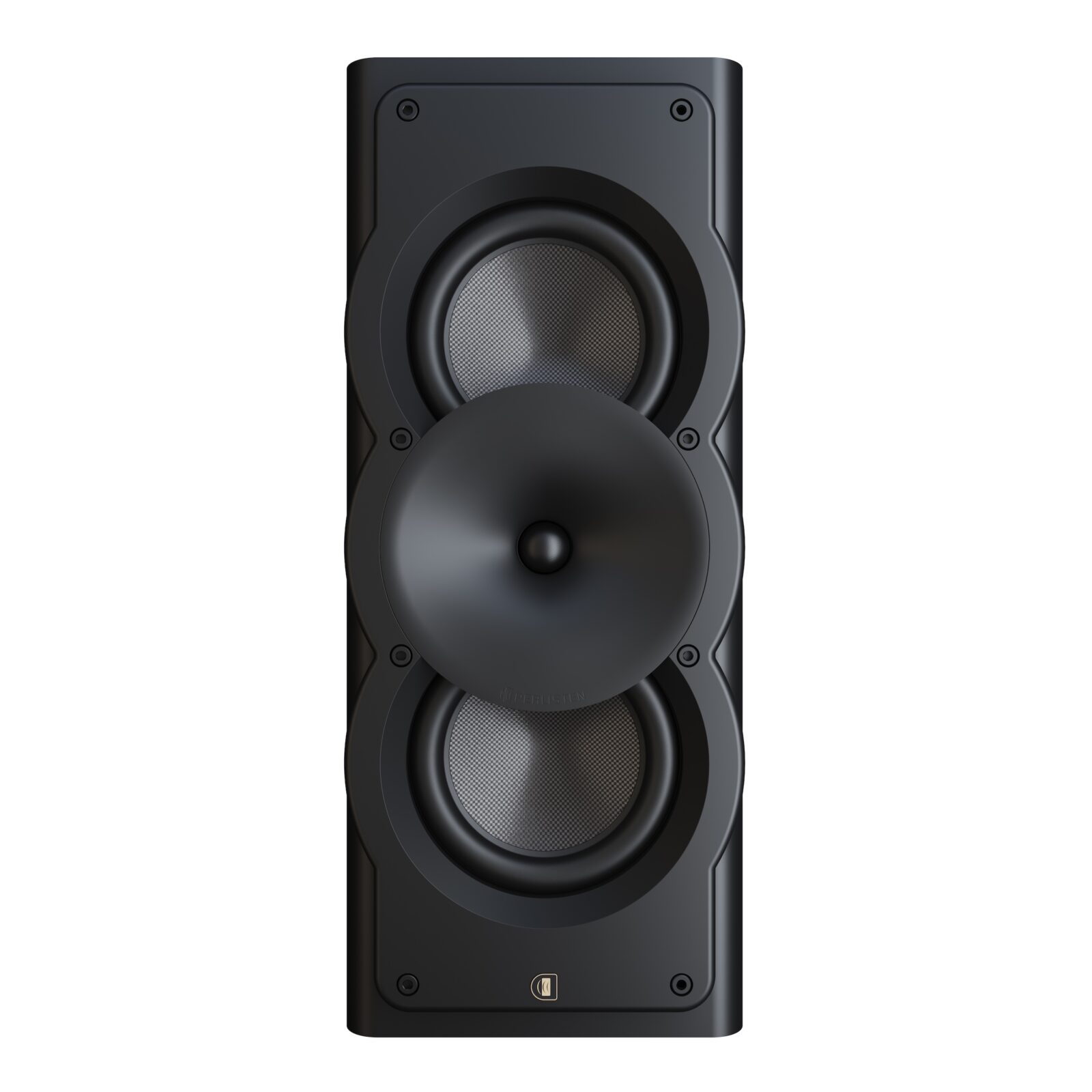

A composite Teteron dome tweeter (35mm) is mounted in a unique waveguide, along with two  carbon fibre (215mm) woofers in a bass reflex enclosure. The aluminium waveguide provides a wide dispersion for listening at various positions.

All transducers are developed in-house from the ground up by Perlisten engineers – bringing decades of research, culminating in this world class design.

Audio Technical Specifications:

• Frequency Response Anechoic:
  • 41 – 30kHz (-6dB)
  • 44 – 30kHz (-10dB)
• Typical In Room bass extension:
  • 40Hz (-6dB)
  • 31Hz (-10dB)
• Response Linearity(+/- 2db): 100 – 10kHz
• Sensitivity: 87.4dB / 2.83v / 1.0m
• SPL capability @ 1m (100-20kHz): 111.4dB peak; 111dB peak <3% – 2nd, 3rd Harmonics
• Impedance:  4Ω nominal / 3.0Ω min
• Transducers (speaker drivers) x3:
  • Tweeter:
    • 1x 35mm (1.3 in) Teteron(textile material) composite dome
  • Woofers:
    • 2x 215mm(8.4 in) Carbon fibre diaphragms

Other:

• Recommended Amplifier Power: 50 – 250W RMS that can handle up to 3.0 Ohms
• Connections: Single stereo terminals
• Enclosure Alignment: 2 way acoustic suspension(sealed).
• Available Finished: Satin Black
• Dimensions (cm): 67.5 x 28 x 35 (HxWxD)
• Pricing: for a pair. Note that it excludes grills, brackets and stands, which are optional extras.
